GN-lOAO2LHV-MIMO

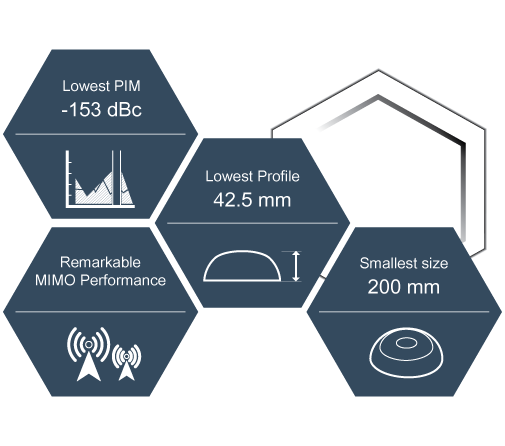

Low PIM MIMO Omni Linear H/V / 698-960, 1695-2700 MHz / 3, 6 dBi / 360°
Electrical Specification
Port1 Port2
Frequency range (MHz) 698-960
1695-2700
698-960
1695-2700

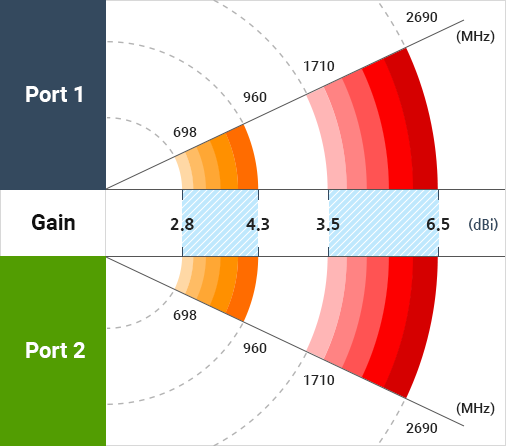

Gain (dBi, Peak) 698-960 : 2.8~4.3
1695-2700 : 3.5~6.5
698-960 : 2.8~4.3
1695-2700 : 3.5~6.5
Isolation (dB) 698-960 : > 19
1695-2700 : > 20
698-960 : > 19
1695-2700 : > 20
VSWR < 1.8 : 1 < 1.7 : 1
Polarization Linear H/V Linear H/V
Intermodulation IM3 (dBc) < -153 (2x43dBm) < -153 (2x43dBm)
Impedance (Ω) 50 50
Max. Effective Power per Port (watts) 50 50
Mechanical Specification
Connector Type & Quantity N-Female × 2 with pigtail cable (300mm | 12 in)
Connector Position Bottom
Antenna Dimension (H x W x D) Ø200 x 42.5 mm | Ø7.8 x 1.6 in
Weight 0.6 kg | 1.3 lb
Mounting Ceiling mount
Radome (Color) ASA(White)
Product Environmental compliance ROHS compliant

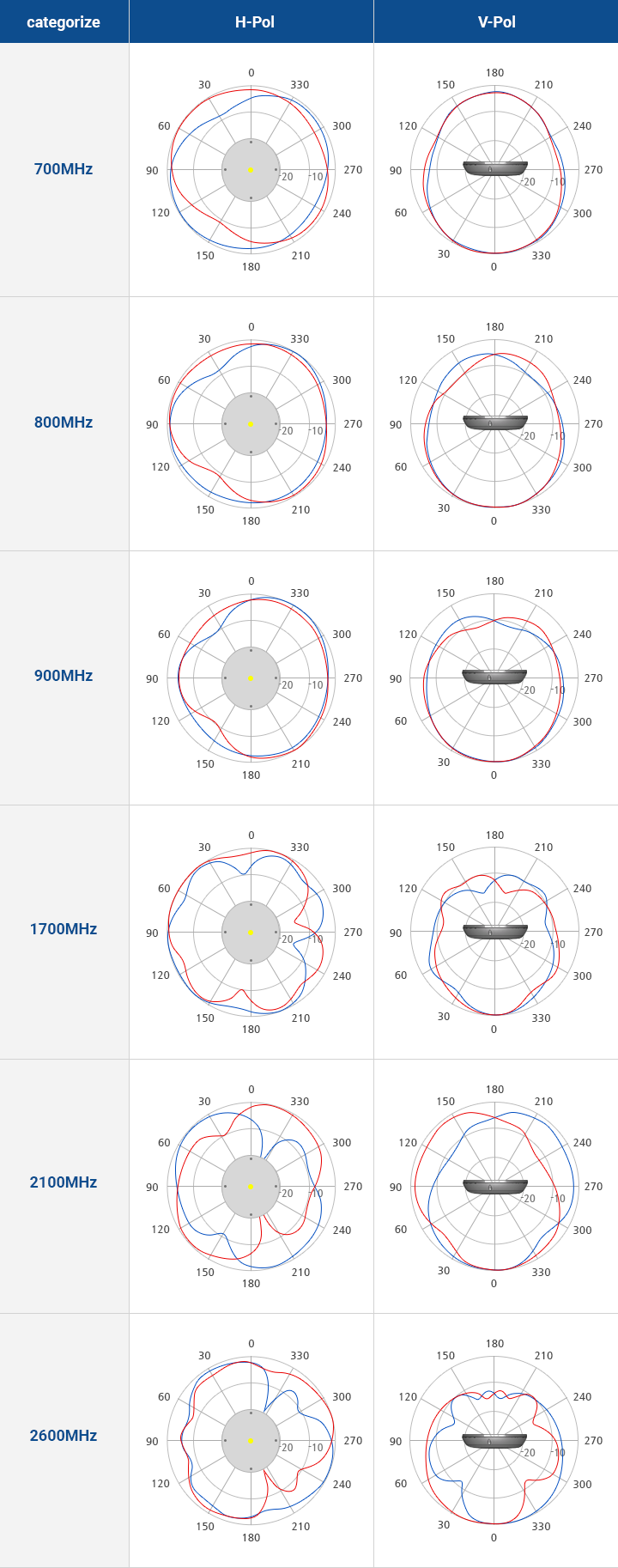

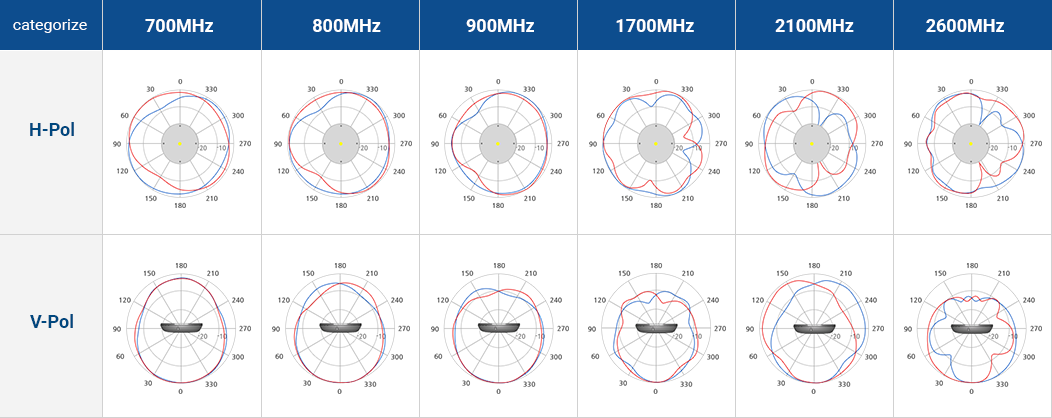

Radiation Pattern
Port1
Port2
product_01LOWPIM_01MIMO-OMNI-DVH_4
mobile_MIMO-Omni-DVH
Antenna 3D
Your browser does not support the HTML5 canvas element.
PIM Test
Docs / Tools
Datasheet (PDF)
Planet Files
iBwave VEX-Files

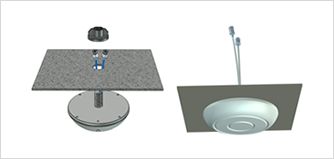

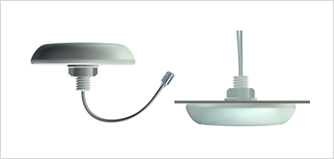

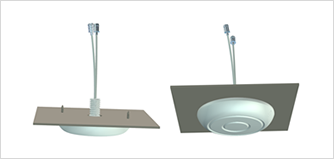

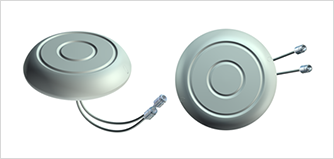

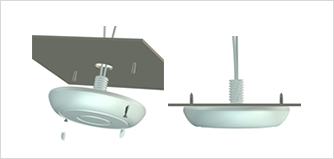

Installation
