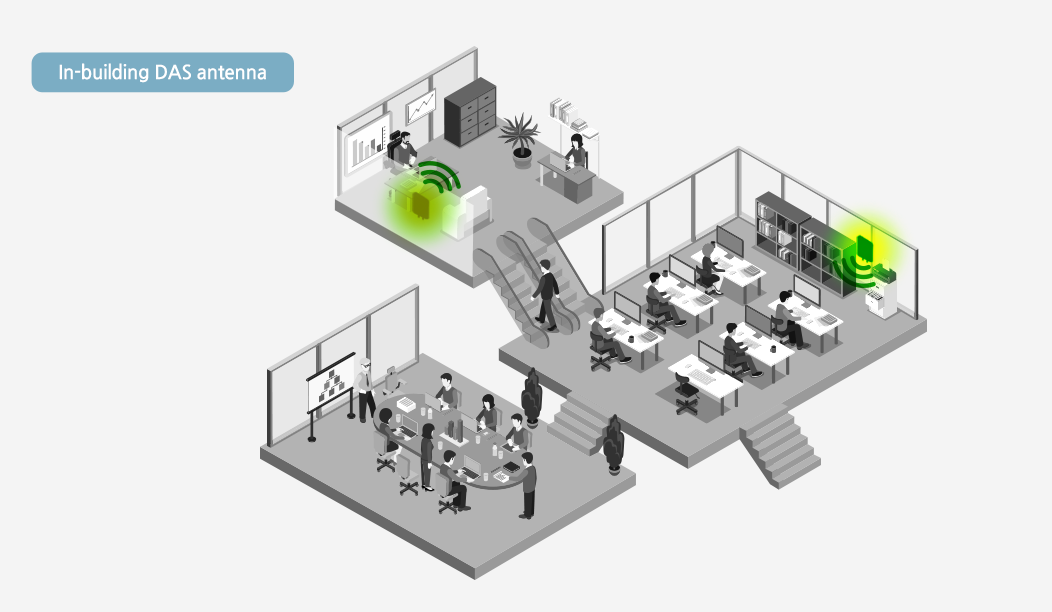

In-Building DAS
GN-IPAL7X-MIMO
Low PIM MIMO Patch / 698-960, 1695-2700 MHz / 5, 7 dBi / 110˚, 60˚
Electrical Specification
Frequency range (MHz) 698-960 1710-2700
Gain (dBi) > 5 > 7

Horizontal Pattern

Azimuth BW (°) 110 60
Front-to-Back Ratio (dB) > 15 > 15

Vertical Pattern

Elevation Beam width BW (°) 110 60
Isolation (dB) > 20 > 20
VSWR < 2:1 < 2:1
Polarization (°) ± 45 ± 45
Intermodulation IM3 (dBc) < -153 (2x43dBm) < -153 (2x43dBm)
Impedance (Ω) 50 50
Max. Effective Power per Port (watts) 50 50
Mechanical Specification
Connector Type & Quantity N-Female × 2 (Optional : 4.3-10 Female x 2)
Connector Position Bottom
Antenna Dimension (H x W x D) 180 x 180 x 55 mm | 7.0 x 7.0 x 2.1 in
Weight 1 kg | 2.2 lb
Mounting Pole or Wall
Radome (Color) ASA / ABS / Anti-UV-PVC (White, Gray)
Product Environmental compliance ROHS compliant

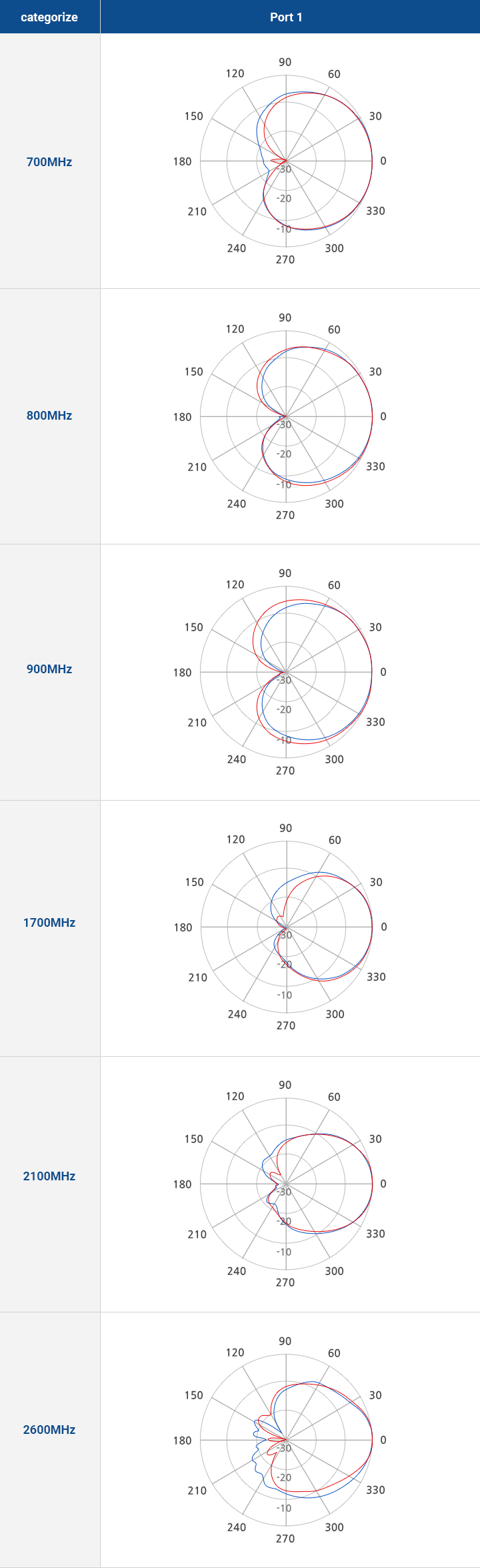

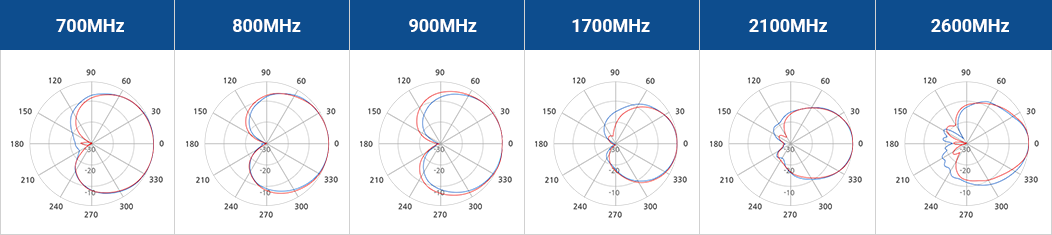

Radiation Pattern
Horizontal Cut
Vertical Cut
product_01LOWPIM_03MIMO-Patch_radiation-pattern_old_4
mobile_MIMO-Patch_old
PIM Test
Docs / Tools
Datasheet (PDF)
Planet Files
iBwave VEX-Files

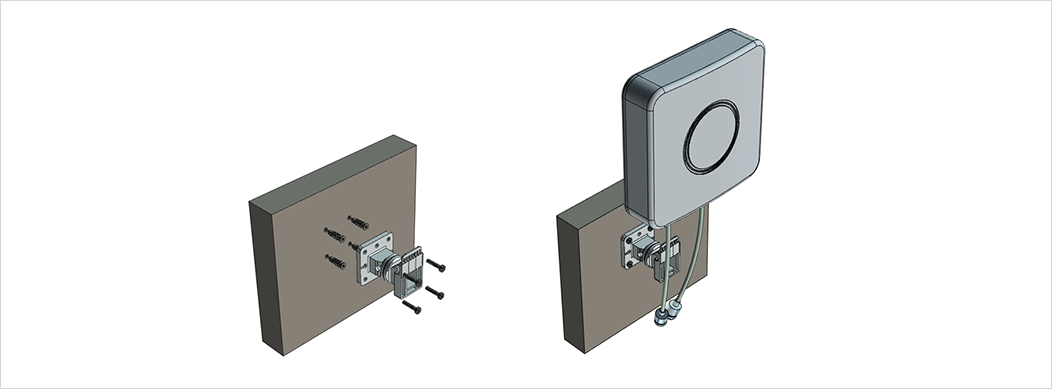

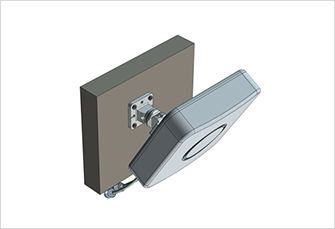

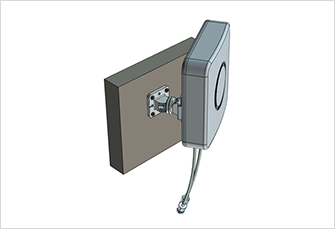

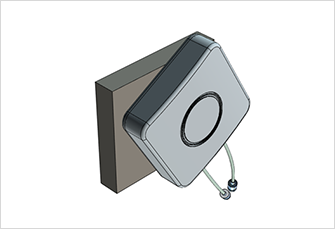

Installation
pro-3-1
pro-3-2
pro-3-3
pro-3-4
product_01LOWPIM_03MIMO-Patch_radiation-pattern_old_6
