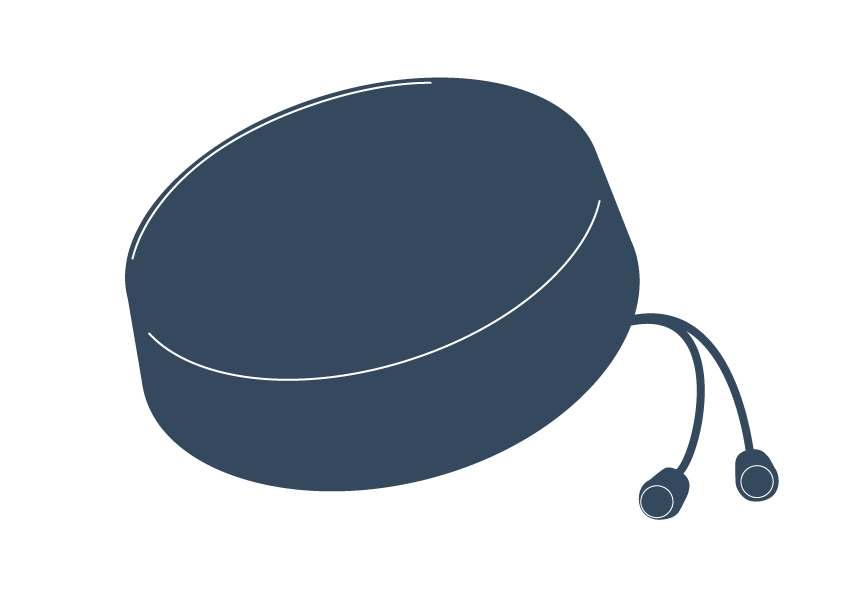

D121027H22 MP-N-WI
In-Building DAS
D121027H22
Low PIM MIMO Omni / 698-960, 1710-2700 MHz / 2, 5 dBi / 360°
Electrical Specification
Frequency range (MHz) 698-960 1710-2700
Polarization Vertical
Gain (dBi, Typical) 3 ~ 4 3 ~ 4
Impedance (Ω) 50
VSWR < 1.5 : 1
Intermodulation IM3(dBc) < -153 (2x43dBm)
Max. Effective Power per Port (watts) 50
Mechanical Specification
Connector Type & Quantity N-Female with pigtail cable (452.12mm | 17.8 in)
Antenna Dimension (H x W x D) Ø246.4 x 58.4 mm | Ø9.7 x 2.3 in
Weight 0.6 kg | 1.3 lb
Mounting Thru-hole ceiling mount Cable Length 452.12mm (17.8”)
Radome (Color) PC, UL94V-0 UV resistant
Product Environmental compliance ROHS compliant
