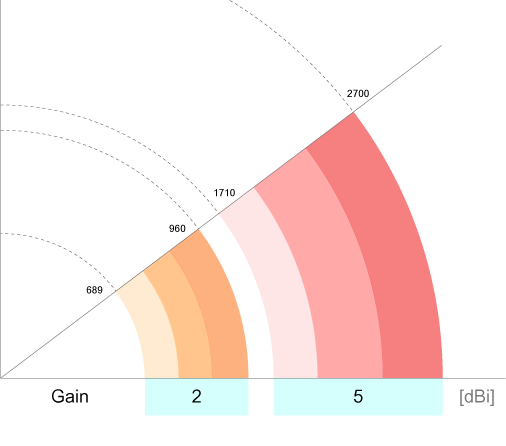

Gain Diagram
D121016H11 S1.5P-N WG
Features & Benefits
D121014H11 S1.7P-N FB
Specifications
D121016H11 S1.5P-N WI
In-Building DAS
D121016H11
Low PIM SISO Omni / 698-960, 1710-2700 MHz / 2, 5 dBi / 360°
Electrical Specification
Frequency range (MHz) 698-960 1710-2700
Polarization Vertical
Gain (dBi, Typical) 2 5
Impedance (V) 50
VSWR < 1.5 : 1
Intermodulation IM3 (dBc) < -153 (2x43dBm)
Max input power (watts) 50
Mechanical Specification
Connector Type & Quantity N-Female with pigtail cable (452.12mm | 17.8 in)
Antenna Dimension (H x W x D) Ø246.6 x 270 mm | Ø9.7 x 4.9 in
Weight 0.6 kg | 1.3 lb
Mounting Thru-hole ceiling mount Cable Length 452.12mm (17.8”)
Radome (Color) PC, UL94V-0 UV resistant
Product Environmental compliance ROHS compliant
